Name: BRDRC Payload Release System for DJI Air 3
Brand: BRDRC

Payload Release System for DJI Air 3 Series

Item Code: BRDRC-EWB9846

Easy to Use Dropping Solution

Key Features:

• 500g Payload Support
• Quick Installation Process

AUD $89.00

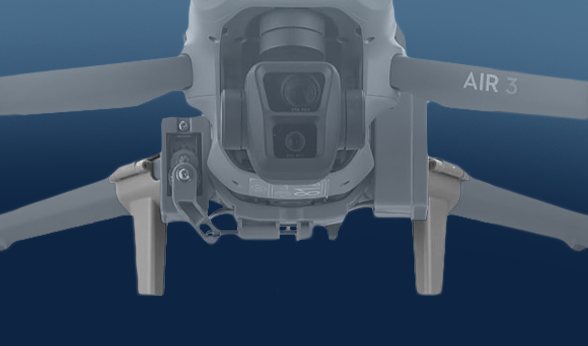

Overview

Use your DJI Air 3 series drone to deliver payloads and enjoy drone fishing with the Payload Release System for DJI Air 3 Series. It can be installed easily around the body of your drone.

This motorised payload release system supports bait-throwing for drone fishing, small item delivery and other operations.

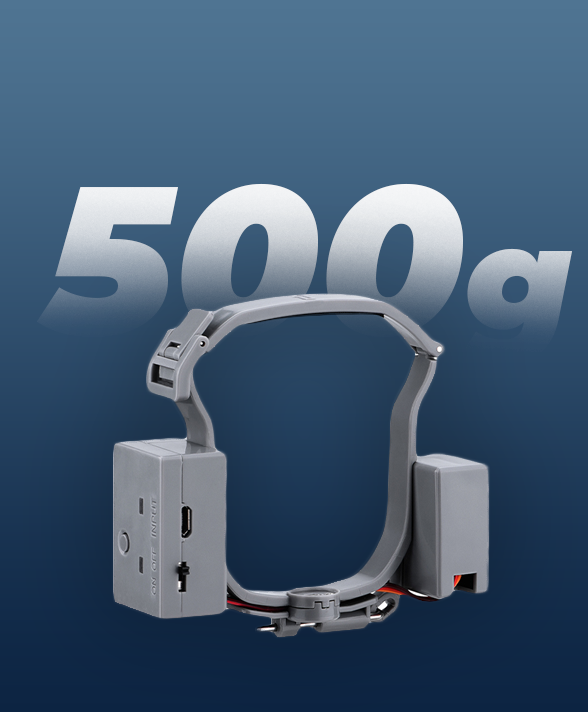

Capable Capacity

Sporting a maximum payload capacity of 500g, you can deliver a wide range of small items. And thanks to the unit's lightweight design, there is minimal effect on your drone’s flight time.

Effortless Installation

With tool-free installation, you can easily attach and detach the Payload Dropping System depending on your flights requirements.

Added Ground Clearance

The included landing gear extensions provide over 2cm of extra ground clearance to accommodate take-offs and landings with cargo attached.

Single Button Release

By utilising the drones auxiliary light, the motorised system can release your cargo at the push of a single button.

Please note: Use of this Payload Release System will void your drone’s factory warranty.

Unlock Your Fishing Potential!

Attach Fishing Line & Bait

Attach your Fishing Line & Bait to your drone's Payload Release System.

Fly Drone & Drop Bait

Send your drone to the desired bait drop location, drop the bait, and fly your drone back to shore - simple, precise, effective.

Enjoy Your Catch!

With extended casting distance, you’ll reach new waters - and reel in more than ever before.

Installation Instructions

Please Note: Exact fastening location may vary between drones, but the process is identical.

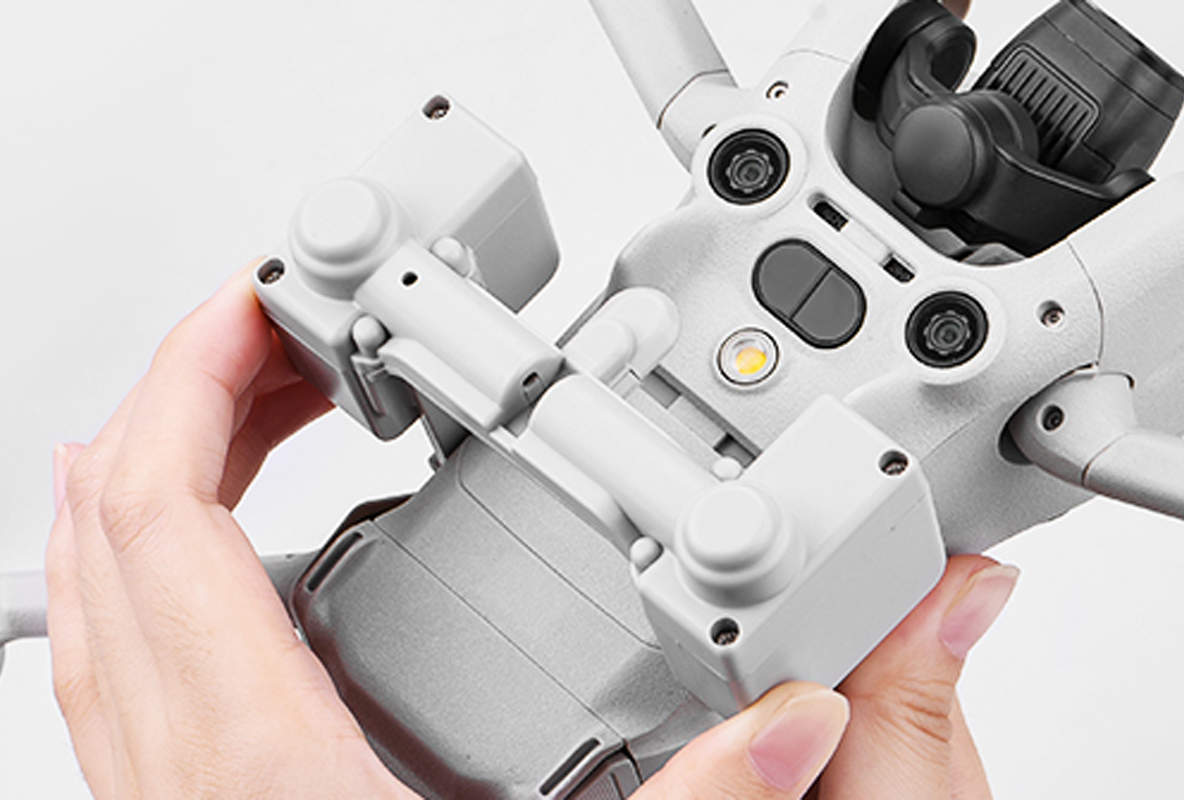

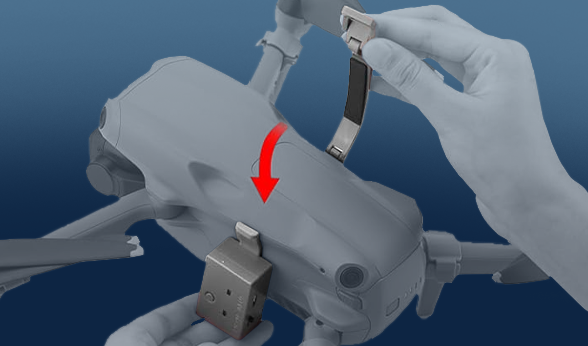

Align with Auxiliary Light

Simply install the system by aligning the device with the downward facing auxiliary light.

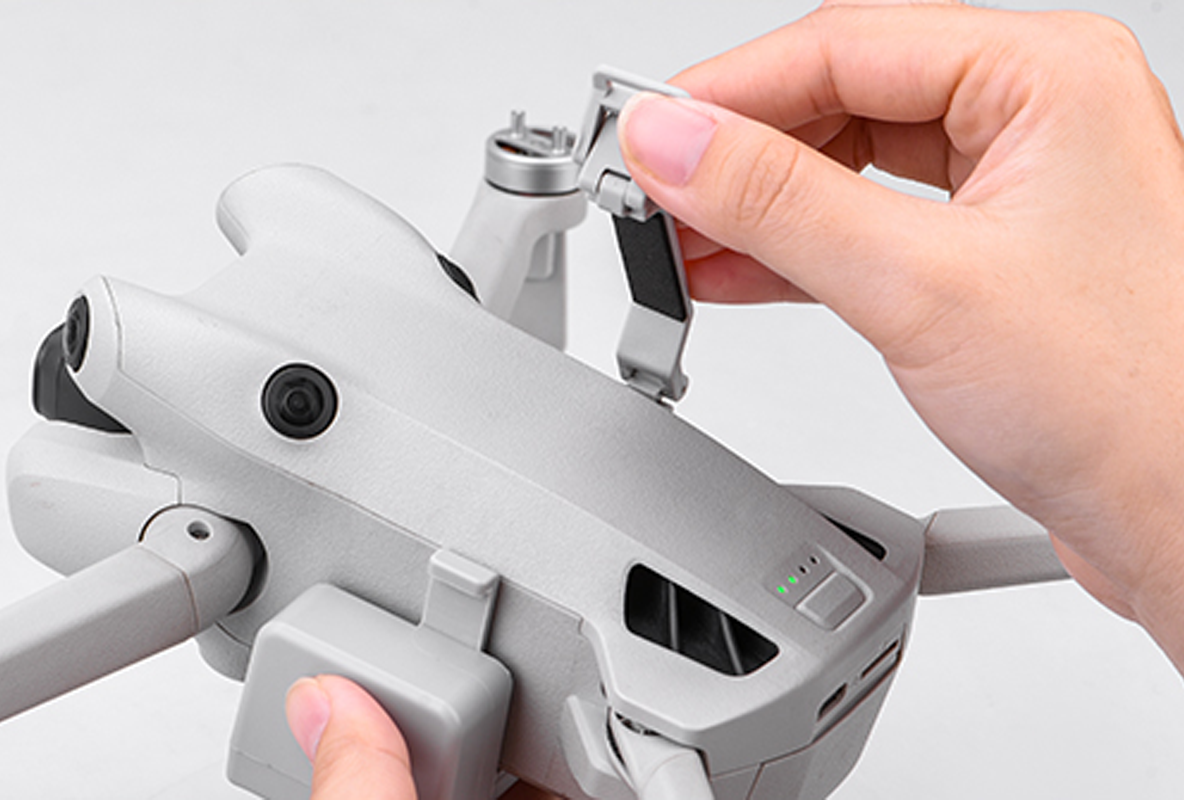

Fasten Latch

Fasten the top latch by snapping closed and securing the device.

Remote Control Set-Up

Using DJI RC 2 as an example, please note that other DJI controllers will follow the same process.

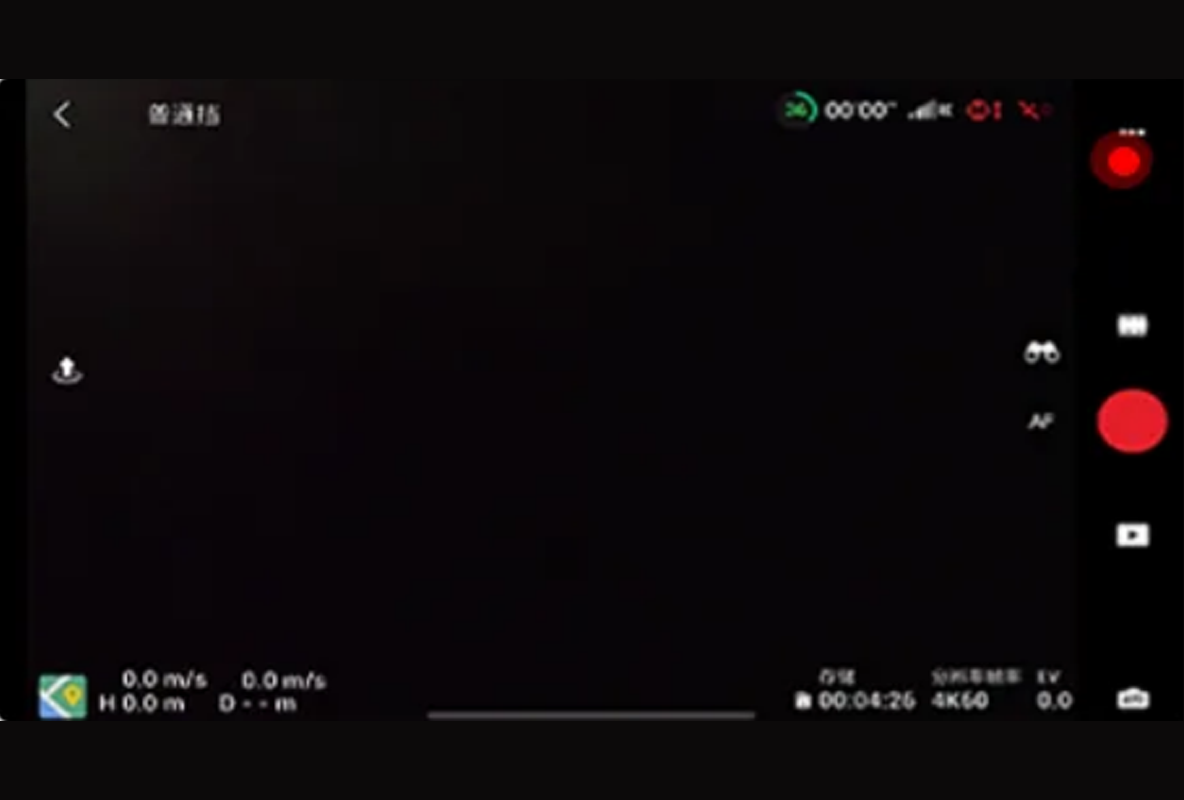

Step 01.

Open DJI Fly App and select "..." in the top right corner.

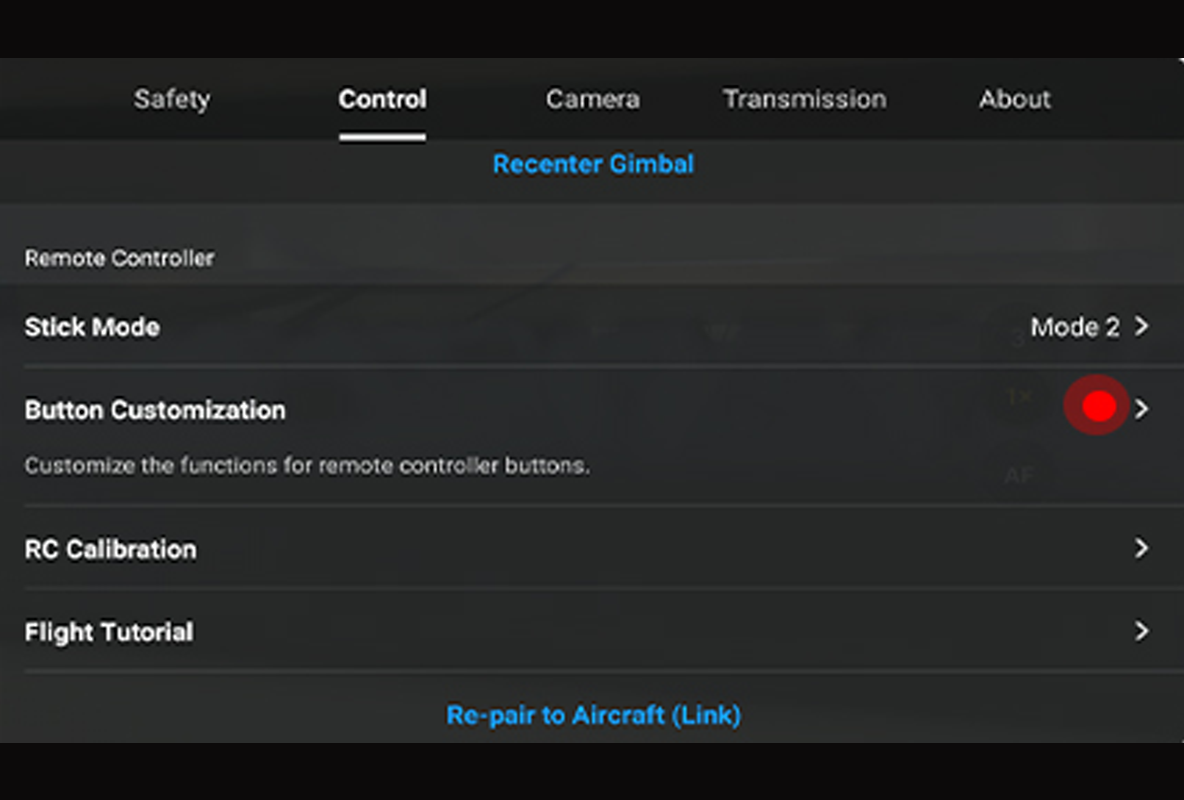

Step 02.

On the “Control” tab, select “Button Customisation”.

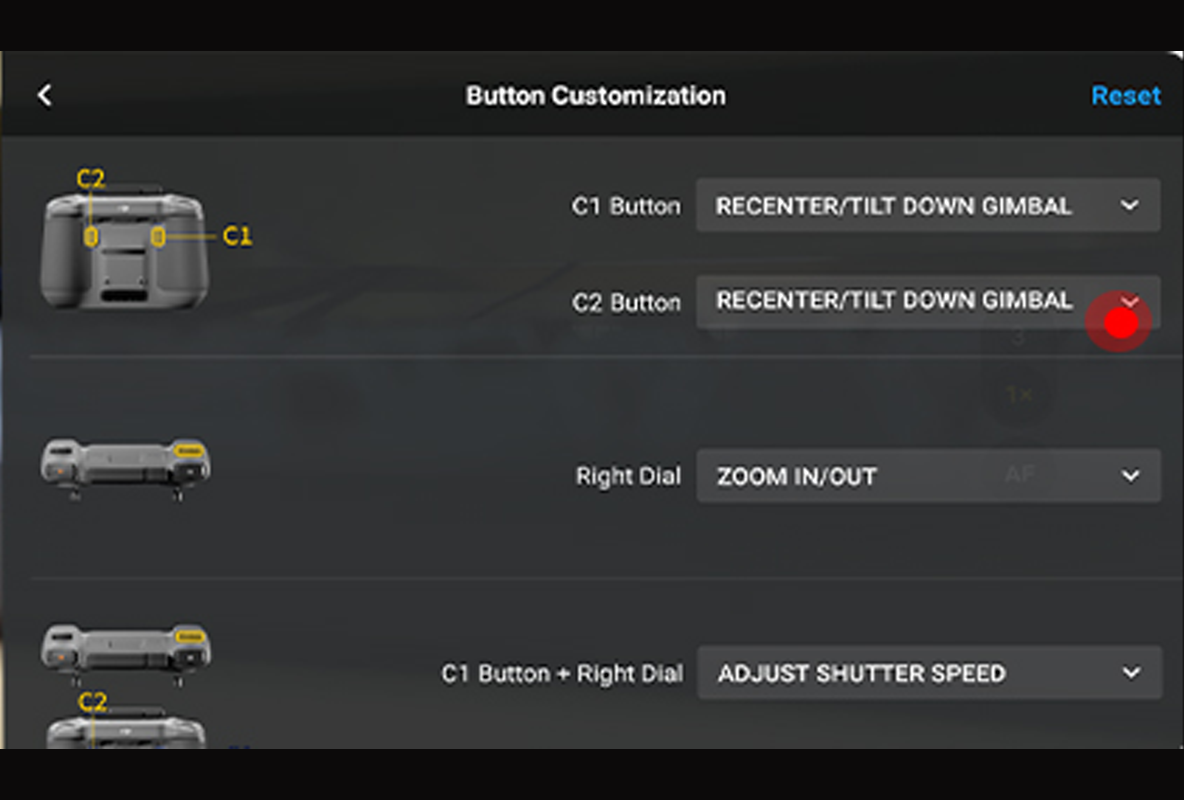

Step 03.

Click on the “C2 Button”.

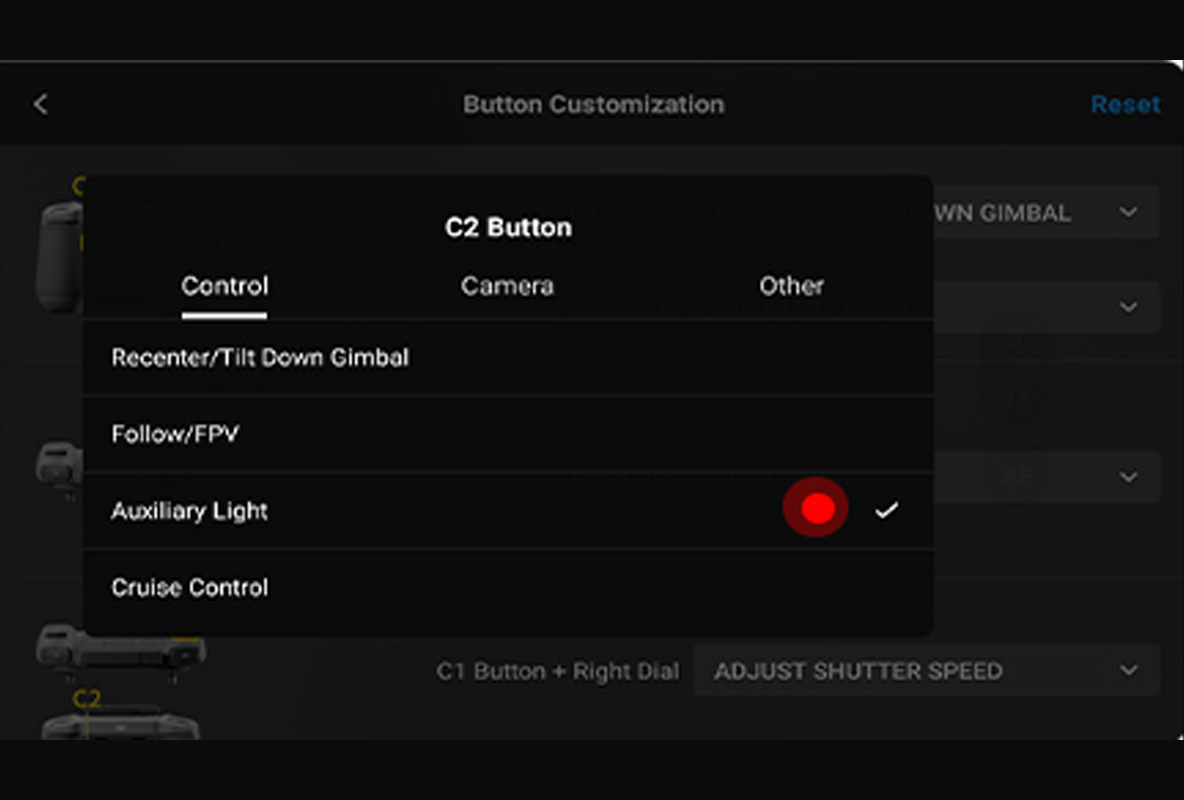

Step 04.

Find and click the “Auxiliary Light” option.

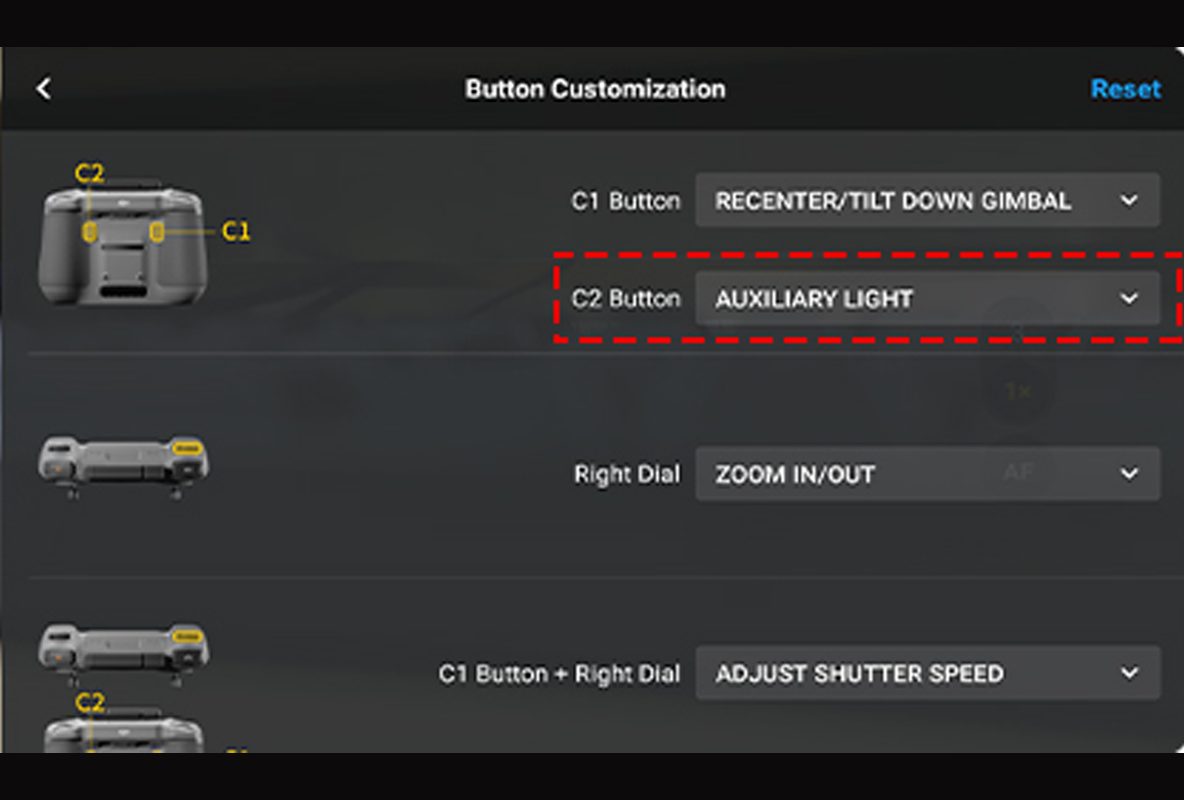

Step 05.

Note “C2 Button” now states “Auxiliary Light”.

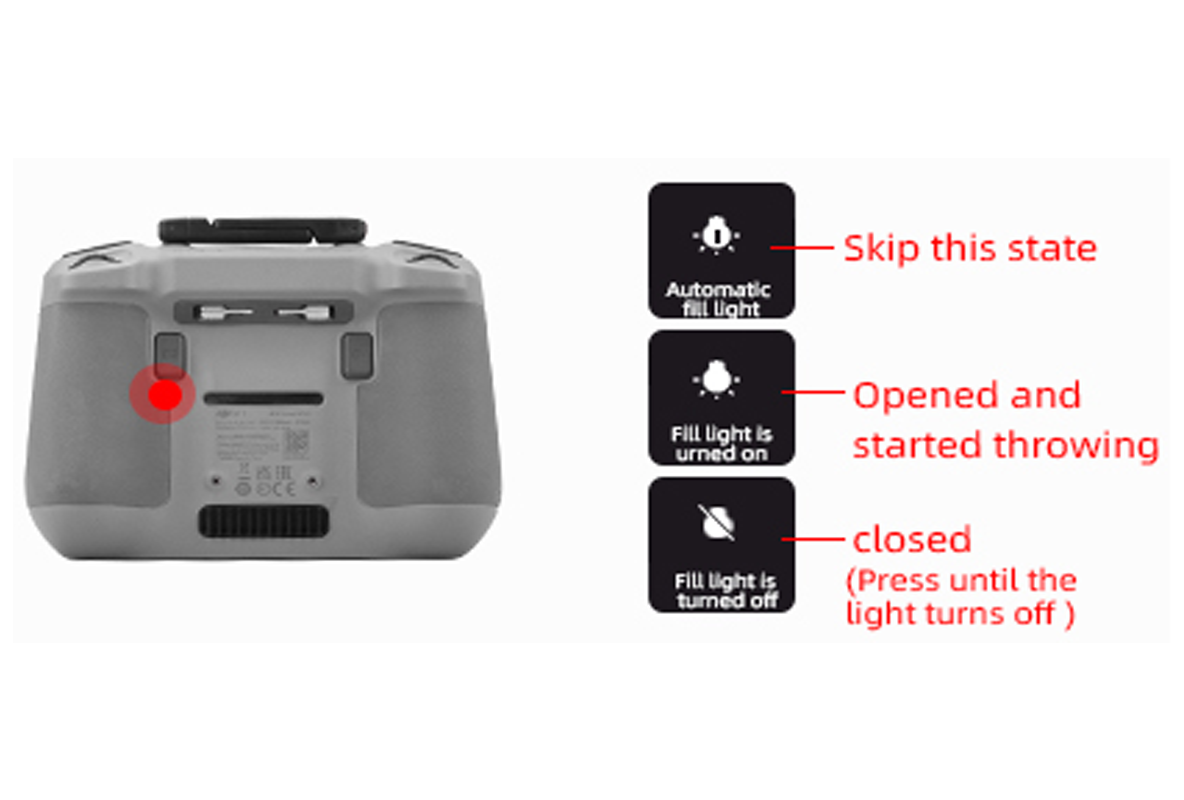

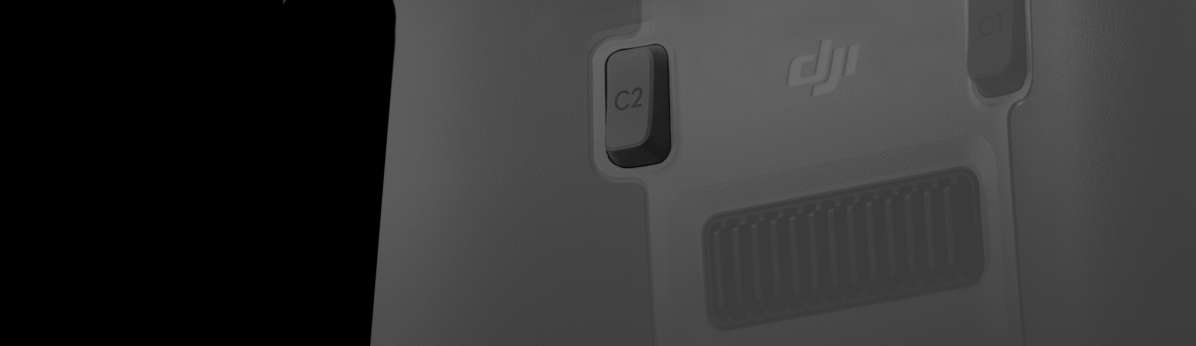

Step 06.

Press the “C2” button on the rear of the controller to switch Auxiliary Light on and off.

This is the trigger for the payload to be released. Please note that the drone must be in flight before turning on/off the light to control the release system.
