Zenmuse S1

Item Code: ZENMUSES1

Light Up the Night

Key Features:

• High & Low Beam Lighting
• 500m Illumination Range
• 68W Rated Power

AUD $2,099.00

Light It Up

Name: Zenmuse S1
Brand: DJI
Price: 2099 AUD
Availability: InStock

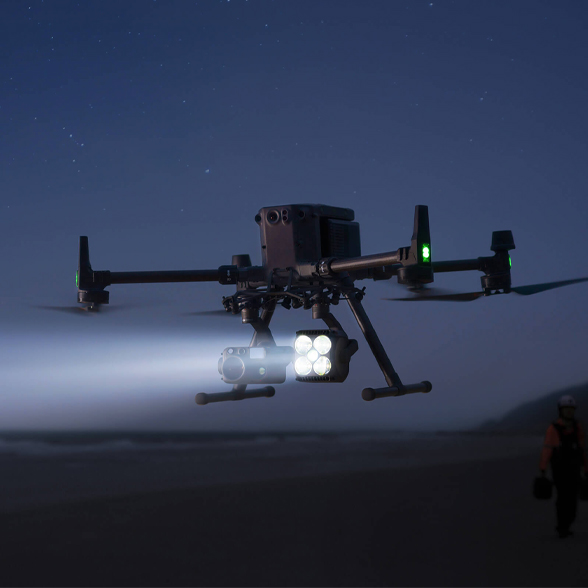

Light up the night with Zenmuse S1, a powerful spotlight payload designed for Matrice 300 series. Sporting LEP technology, S1 can be used to illuminate areas big and small, far and close, delivering reliable performance for a variety of applications.

Low Beam Lamps

FOV 15°, 13 lux@100 m • 6500K Colour Temperature

High Beam LEP

FOV 4°, 30 lux@100 m • 7500K Colour Temperature

Low Beam Mode

Ideal for short range search and inspection, Low Beam Mode provides a 15° FOV within a 150m range.

High Beam Mode

Suitable for long range use beyond 300m, High Beam Mode utilises S1’s central LEP (Laser Excited Phosphor) for ultra-bright performance with just 17 W power consumption.

Delivering a 4° FOV, High Beam Mode covers the illumination range of cameras exceeding 15X zoom.

Both-On Mode

Light up more with Both On Mode. Utilising both high and low beams, Both On Mode delivers improved central illuminance with a 15° FOV, suitable for illuminating large areas in a flash.

Strobe Mode

Need to quickly acquire attention? Deploy Strobe Mode for high-speed 5Hz strobe flashing. Strobe Mode is built for emergency response and public safety scenarios.

Ultra-Bright, Ultra-Efficient

Hi-Lux Performance

Zenmuse S1 provides 35 lux of central illuminance at 100 meters for effective illumination of subjects. With Zenmuse S1 you’ll be able to distinguish fine details with ample illumination.

Shortcut Operation

Optimise operational efficiency with support for customisable controller shortcuts. Map adjustments and lighting modes to DJI RC Plus’ C buttons for quick, easy operation.

Mobile SDK

Unlock custom functionality with support for Mobile SDK and pair Zenmuse S1 with third-party mobile apps. Designed for users with specialised needs.

Mount Anywhere, Operate Any Time

Zenmuse S1 can be mounted to Matrice 300 series in any orientation to suit your setup needs. Plus, with an IP54 rating suitable for temperatures ranging from -20° to 40° C, you can operate virtually anywhere, at any time with strong environmental adaptability.

Ample Applications

Night-time Search & Rescue

Night Patrol

Emergency Response

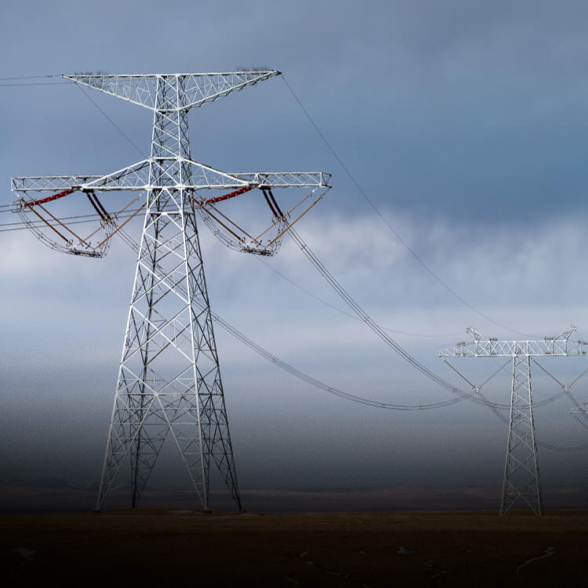

Utility Asset Emergency Repair

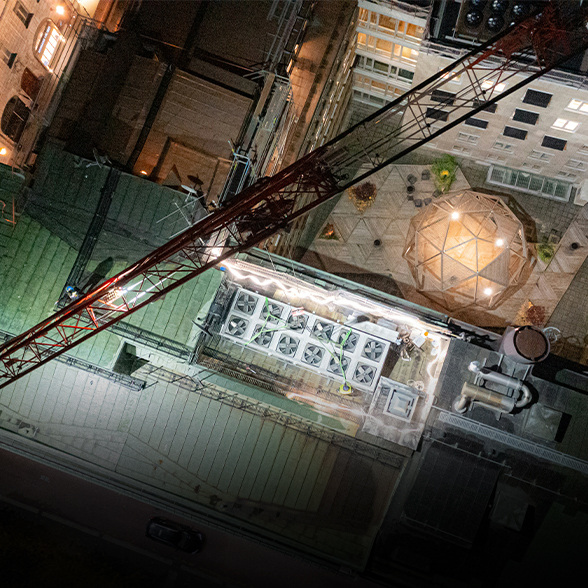

Night-time Inspection

Payload Protection

Vision Protection

On the ground? Zenmuse S1 automatically limits brightness to 40% to protect operator vision.

Internal Protection

The payload sports multiple protection mechanisms for temperature, overcurrent and power to ensure reliable performance, mission after mission.

Burn Protection

Zenmuse S1’s durable plastic casing has a maximum contact surface temperature of 50° C, effectively eliminating burn risks.

Talk to a DJI Enterprise Expert

Learn More with D1 Blog

Visit our YouTube Channel

* All data on this page was collected using a production model in a controlled environment. Actual results may vary depending on the environment, usage, and firmware version.

** All videos and photos on this page were taken in strict compliance with local laws and regulations. Demos are for reference only. Please observe local laws and regulations and ensure that the aircraft has obtained relevant certifications before flying.

**** To ensure that the equipment operates steadily and continuously, please perform regular maintenance.

Product Name	Zenmuse S1
Weight	760±10 g
Dimensions	125×152×171 mm (L×W×H)
Rated Power	68 W
Eye Safety Class	IEC 62471: Risk Group 1
Shell Temperature	<50° C (122° F, plastic shell) ^{Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.}
Ingress Protection Rating	IP54 ^{Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.}

Operating Temperature	-20° to 40° C (-4° to 104° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)

Stabilization System	3-axis (tilt, roll, pan)
Angular Vibration Range	Hover: ±0.01° Flight: ±0.02°
Mounting	Detachable DJI SKYPORT
Mechanical Range	Tilt: -129° to +73° Roll: ±55.8° Pan: ±327° ^{Structural limit, not controllable range.}
Controllable Range	Tilt: -120° to +60° Pan: ±320°
Operation Mode	Follow / Free / Re-center

Maximum Central Illuminance	35 lux @100 m (Both On mode) ^{Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.}
Low Beam Central Illuminance	13 lux @100 m (Low Beam mode) ^{Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.}
High Beam Central Illuminance	30 lux @100 m (High Beam mode) ^{Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft}
Effective Illumination Angle	15±1° (10% relative illuminance, Low Beam mode and Both On mode) 4±0.5° (10% relative illuminance, High Beam mode)
Typical Color Temperature	6500K typical value (Low Beam mode) 7500K typical value (High Beam mode) ^{Measured in a laboratory environment at an ambient temperature of 25° C (77° F) using an integrating sphere. Actual results may vary slightly due to different experimental conditions, and the final effect is subject to actual use.}
Dimming Mode	Analog dimming
Effective Illumination Distance	500 m (Both On mode) ^{Measured in a laboratory environment at an ambient temperature of 25° C (77° F). Actual conditions may vary slightly due to specific environmental humidity, weather conditions, and other factors. The final effect is subject to actual use.}

Lighting Control	Turning light on/off, brightness adjustment
Strobe Mode	5 Hz strobe
Lighting Mode	Low Beam mode, High Beam mode, Both On mode
Remote Controller Buttons	Can be set for turning the light on/off, brightness adjustment, or lighting mode changes
Gimbal Synchronization	Supports synchronized control with other gimbal-equipped payloads

Eye Protection	Automatically limits brightness to 40% when not in flight
Payload Protection	LED, LEP temperature protection, overcurrent protection, and power protection to prevent damage.
